Original price was: $390.00.$97.99Current price is: $97.99.
- Built-in diopter correction wheel from -1 to +4
- Integrated 2-stage anti-fog protection technology

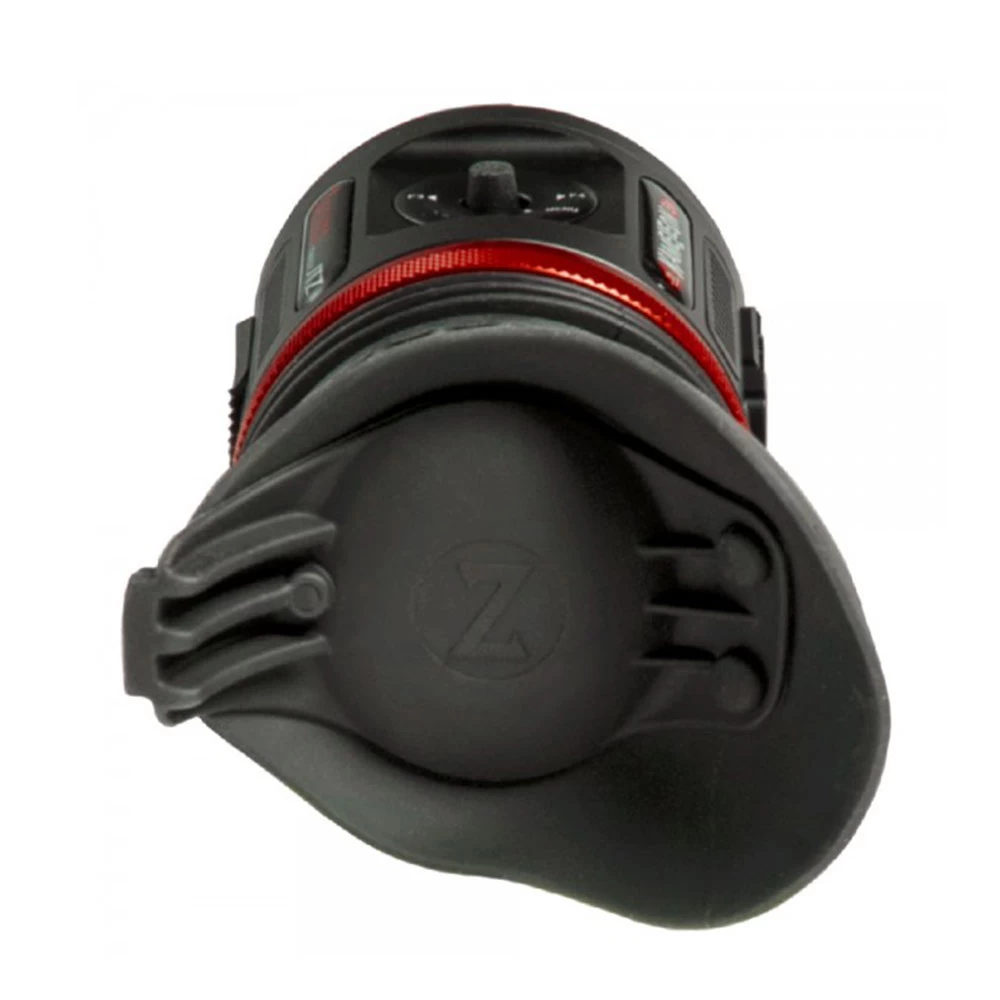

- Automatically closing eyecup against incident sunlight
- Menu navigation via joystick and function keys
- ARRI rosette on both sides
- LUT import
- Built-in silent fan against overheating
- High quality products, hassle-free returns.
- Safe Transactions, Always
- fast shipping
- Shop with confidence, enjoy free returns.
When you send in your old Zacuto Gratical Eyes and buy a Kameleon EVF Pro, saving the end customer a whopping €400. But only from 01/08 – 31/10/2024.
Please contact our sales team for more information.
Overview

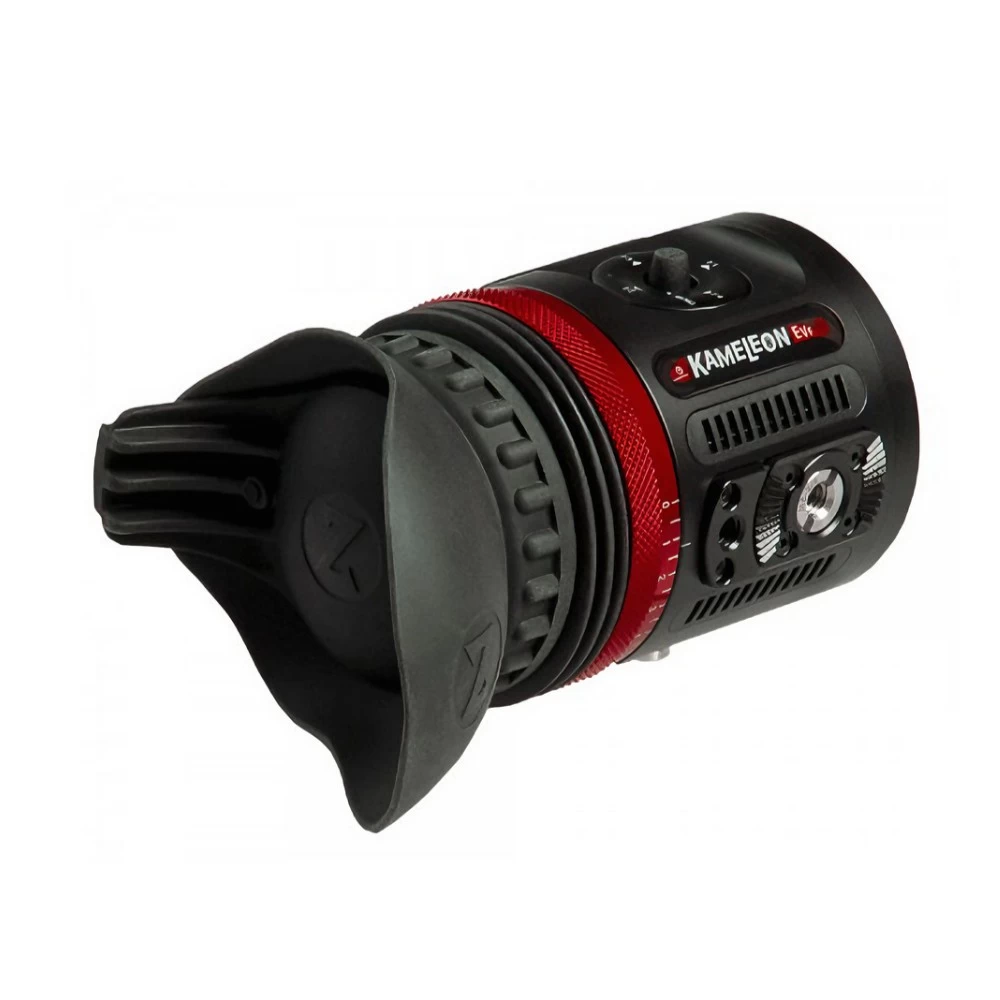

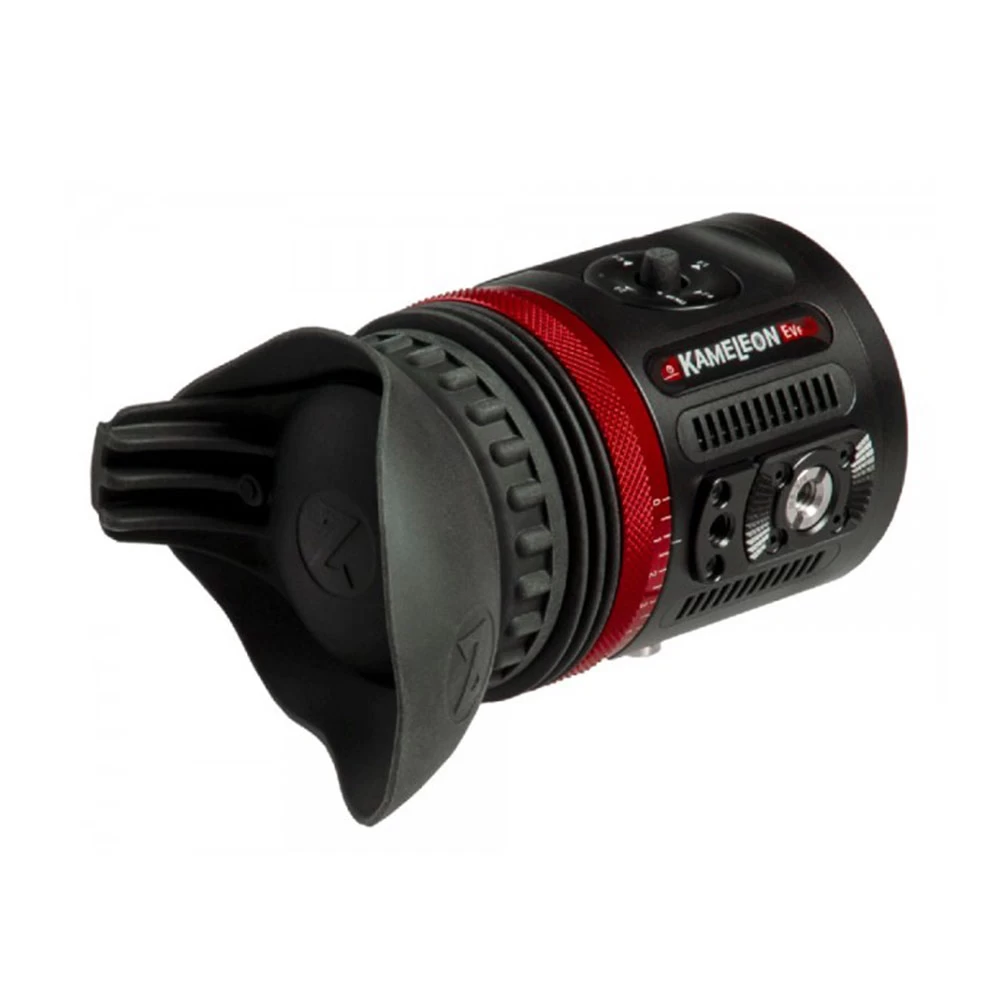

The Kameleon EVF Pro, powered by JTZ, is an electronic 0.71″ micro OLED viewfinder with HDMI and 3G-SDI input for numerous camera systems. The Kameleon EVF Pro is the successor of the Kameleon EVF and offers a revised interface with the software functions waveform and vectorscope. The new overlay allows a brighter, more colorful image and helps to prevent burn-in. The Kameleon EVF Pro supports video resolutions up to 4K DCI (4096 x 2160 pixels) via HDMI or Full HD (1920 x 1080 pixels) via HDMI and 3G-SDI. Numerous integrated software functions allow in-depth analysis of the image. The EVF is powered via the 4-pin Lemo 0B connector with 7 to 20 V DC. ARRI rosettes are available on both sides for mounting.

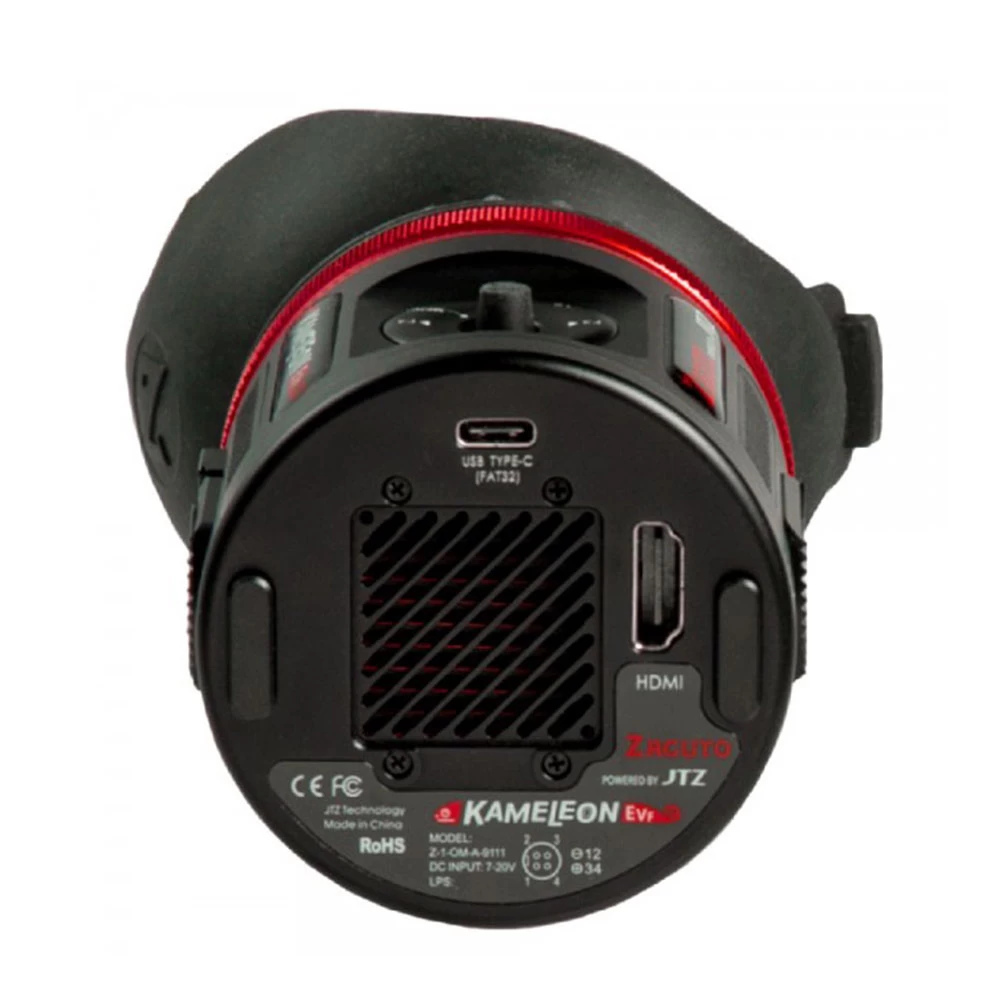

Data outputs
1x HDMI via HDMI-A
1x 3G-SDI via BNC
1x USB via USB-C (for LUT import and firmware updates)
1x Power supply DC via 4-pin Lemo 0B
Specifications
| Display |
0.71″ Micro-OLED with approx. 6.5 million pixels |
| Contrast Ratio |
10,000:1 |
| Aspect Ratio |
16:9 |
| Native Resolution |
1,920 x 1,080 pixels (Full HD) |
| Color Depth |
24-bit RGB |
| Pixel Density |
3,103 ppi |
| Supported Video Resolutions |
HDMI – 4K DCI (4096 x 2160), Ultra HD (3840 x 2160), Full HD (1920 x 1080p/i), HD (1280 x 720p) 3G-SDI – Full HD (1920 x 1080p/i), HD (1280 x 720p) |
| Sonftware Functions |
Waveform, Vectorscope, Custom Scaling, Frame Lines, Calibration Settings, Center Marker/Crosshair, Anamorphic, 4:1 Zoom, Image Flip, False Color, Red Line Peaking, Freeze Frame, Zebras, Histogram, Audiometers, 4 programmable hotkeys, 3D LUT Import, SMPTE Color Bars, Edge Enhancement Levels 1-3 (Peaking) |
General Product Information
Dimensions (W x H x D): 124.46 x 69.85 x 71.88 mm (4.9 x 2.75 x 2.83 in)
Weight: 425.24 g (15 oz)
Operating Voltage: 7 – 20 V DC (via Lemo 0B)
Power Consumption: 5 W
