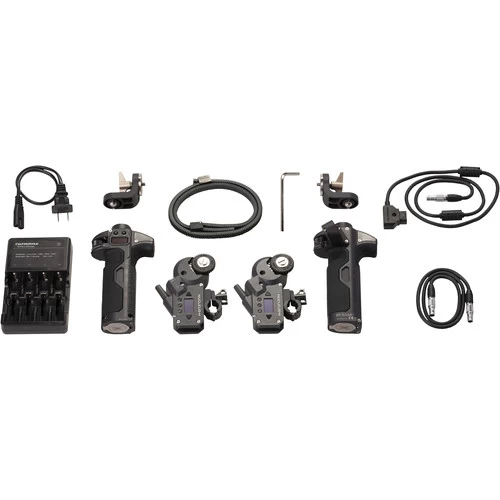

Tilta Nucleus-M Partial Kit 5 (WLC-T03-K5)

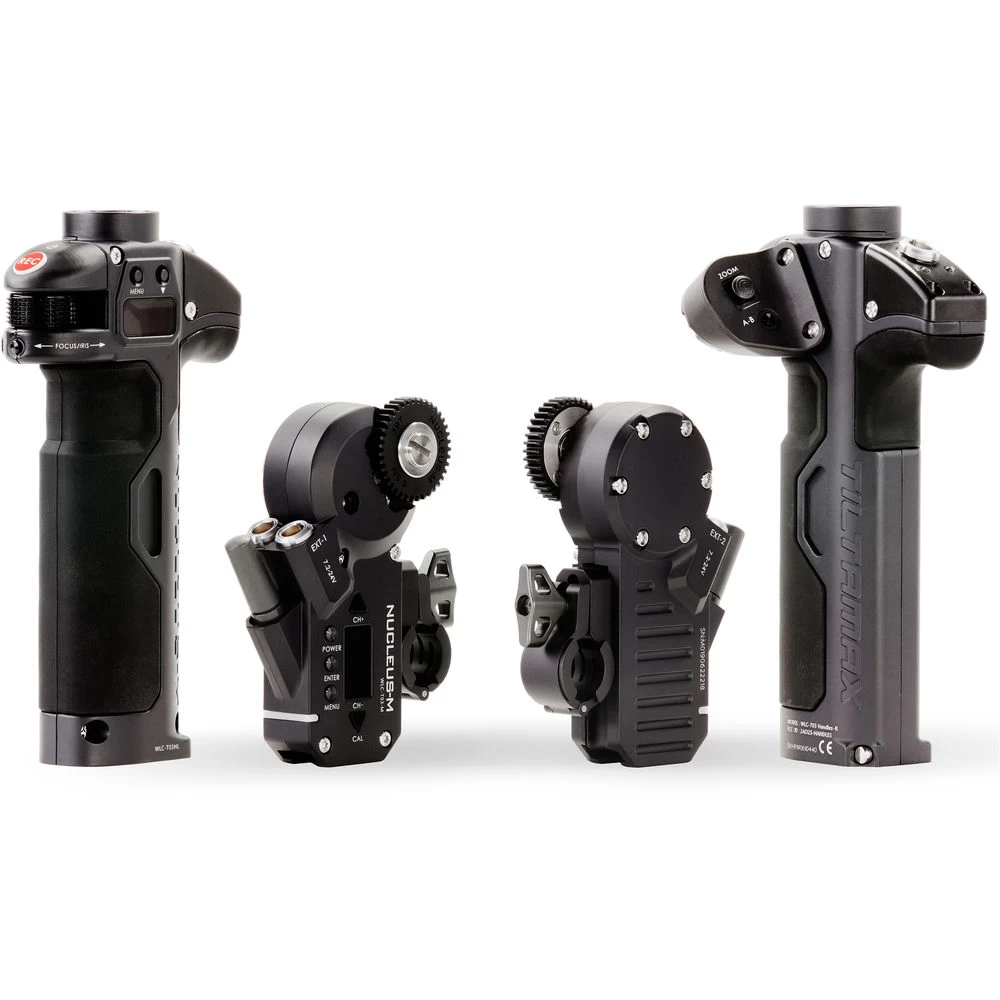

The Tilta left-side Wireless Handgrip provides fingertip lens control while also functioning as a handgrip support for your camera rig. This component of the separately available Nucleus-M FIZ (focus/iris/zoom) system enables you to split control between the handgrip and the hand unit as you prefer.

With a wireless control range of up to 1000′, the Wireless Handgrip can be used for drone or car-mounted shots in addition to handheld configurations. Mount the handgrip using its ARRI-style rosette or use an optional adapter to mount to your gimbal. Use this grip with a separately available right-side grip for full focus, iris, and zoom control of cine-style lenses.

Handgrip features include three knob-rotation settings, optional adapters for either bar- or ring-based gimbals, LED indicators, and an LCD display. An optional thumb joystick is available separately for the left handgrip. Powered by two 18650 lithium-ion batteries (not included), the handgrips can maintain a single charge for up to two days. As part of the Nucleus-M system, the Wireless Handgrip provides a run/stop function for select cameras.

The Tilta right-side Wireless Handgrip provides fingertip lens control while also functioning as a handgrip support for your camera rig. This component of the separately available Nucleus-M FIZ (focus/iris/zoom) system enables you to split control between the handgrip and the hand unit as you prefer.

With a wireless control range of up to 1000′, the Wireless Handgrip can be used for drone or car-mounted shots in addition to handheld configurations. Mount the handgrip using its ARRI-style rosette or use an optional adapter to mount to your gimbal. Use this grip with a separately available left-side grip for full focus, iris, and zoom control of cine-style lenses.

Handgrip features include three knob-rotation settings, optional adapters for either bar- or ring-based gimbals, LED indicators, and an LCD display. Powered by two 18650 lithium-ion batteries (not included), the handgrips can maintain a single charge for up to two days. As part of the Nucleus-M system, the Wireless Handgrip provides a run/stop function for select cameras.

The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.

The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.

Use this DSLR Lens Follow Focus Adapter from Tilta to tie around your DSLR lens and control focus with any of Tilta’s follow focus systems such as the Nucleus-Nano or Nucleus-M. The adjustable, zip tie-style adapter ring is made of silicone and plastic and ties around most DSLR lenses. The teeth lock into the follow focus motor’s gear for smooth adjustments.

This 23″ Nucleus-M D-Tap to 7-Pin Motor Power Cable from Tilta is designed to power your Nucleus-M lens control motor using a D-Tap power source.

After powering one motor with this cable, other motors may be daisy-chained to each other.

The Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable is 21.65″ long and provides power and control between two Nucleus-M follow focus motors. Please note, you will still need to power one of the motors via a D-Tap to 7-pin cable, or a 3-pin to 7-pin cable connected to a power source. Neither the motors, power cable, nor power source is included.

This set of two ARRI-Standard Rosette Adapters from Tilta is used to mount your Nucleus-M lens control handgrips onto standard ARRI rosettes. Both right and left adapters are included in the set.

The Tilta Nucleus-M Battery Charger can charge one to four batteries used in the handset and handles of the Nucleus-M wireless lens control system. This versatile charger can be powered using AC, 5V USB, or 12V vehicle power. Compatible with 18650 lithium-ion and select other batteries, the charger features LED status lights and spring-loading for a secure battery fit.
