Teradek 6GHz Flexible H Antenna Kit (Bolt 6 / Bolt 4K)

These are designed for special horizontally polarized antennas for use with the V antennas. Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics of the system by combining the two perpendicular polarizations. For this H+V antenna configuration, two H antennas should be used at the TX and two at the RX as pictured. This configuration should allow for better reception and better video quality in medium-range situations and/or when the environment will create a lot of reflections for the wireless signal.

The combination of H and V antenna signals achieves better diversity than V antennas alone, especially while shooting outdoors. H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner compared to the vertical signal from the V antenna.

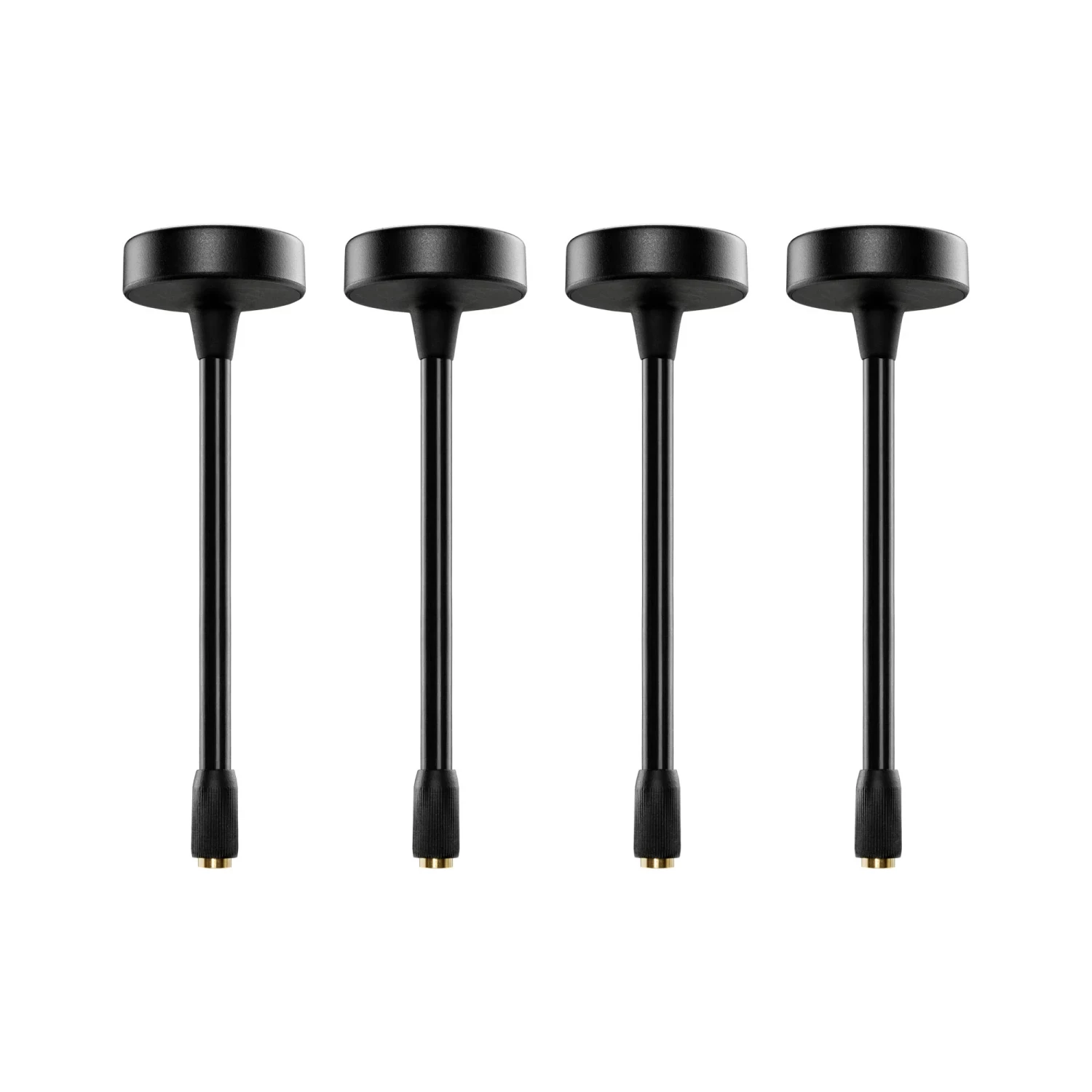

• 6G Flexible H Antenna ‘Mushroom’ (2dBi 4.9-7.3Ghz RP-SMA)
• Output: 2dBi 4.9-7.3Ghz RP-SMA
• Polarization: Mushroom Horizontal
• Meant for Bolt 4K or Bolt 6 and to be used with V antennas
