SmallRig 3641 Lightweight Multifunctional Matte Box Ø114mm Basic Kit

SmallRig Multifunctional Modular Matte Box (Φ114mm) Basic Kit 3641: Comprehensive Solution for Cinematic Shooting

The SmallRig Multifunctional Modular Matte Box (Φ114mm) Basic Kit 3641, part of the Revo-Arcane series, is meticulously designed for mirrorless cameras and cine lenses. This matte box serves a crucial role in preventing unwanted sunlight, glare, and flare, allowing cinematographers to have precise control over their shots. Packed with versatile features, this kit provides a comprehensive solution for professional cinematic shooting.

Key Features:

1. Threaded Adapter Rings: The matte box comes with five threaded adapter rings (Φ67-114mm / Φ72-114mm / Φ77-114mm / Φ82-114mm / Φ86-114mm) to accommodate common DSLR lenses and circular filters such as VND, GND, CPL. For additional lens compatibility, Clamp-On Ring Kit (Φ80-114mm / Φ85-114mm / Φ95-114mm / Φ110-114mm) 3408 or Silicone Donut 3409 can be separately purchased.
2. Filter Frame (4×5.65″): The kit includes a filter frame with an aluminum alloy frame and anti-off design for easy and fingerprint-free installation. For 4×4″ filters, Filter Frame 3648 is recommended. For holding multiple slide-in filters simultaneously, Filter Frame Kit (4×5.65″) 3649 is available.

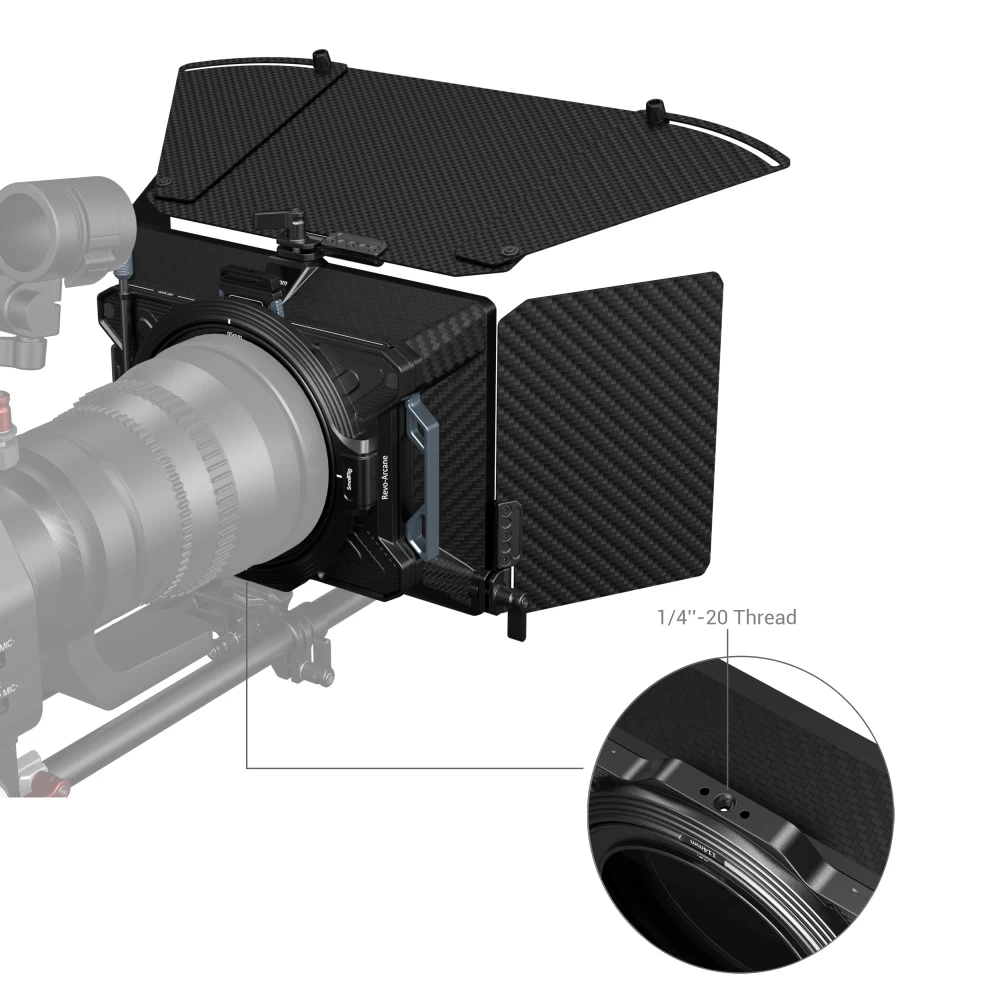

3. Lens Hood and Flags: The lens hood features magnetic installation and a quick-release design for convenient use. The carbon fiber top flag opens 180° with side wings extending 38°, while the side flags open 180°, providing excellent light control.
4. Dual Rod Support: The included dual rod support not only supports but also protects the lens, ensuring stability during shooting.
5. Lightweight Construction: The Revo-Arcane series matte box is crafted with magnesium alloy and carbon fiber, providing a lightweight shooting solution without compromising durability.

Note:

1. Incompatible with 2mm thick, 100 x 100mm, and 100 x 150mm slide-in filters.
2. Cannot hold slide-in filter and circular filter simultaneously.
3. Incompatible with circular filters having an outside diameter larger than 100mm.
4. Place Filter Frame (4×4″) 3648 in the innermost slot near the lens.
5. Install VND Filter Kit 3651 in the innermost slot near the lens after removing the lens hood.

Compatibility:

1. Φ114mm cine lens
2. Any brand of 4 x 5.65″, 4mm thick slide-in filter
3. Any Φ67mm-Φ72mm-Φ77mm-Φ82mm VND, GDN, CPL, ND filter (max outside diameter: 100mm)
4. Any Φ67mm-Φ72mm-Φ77mm-Φ82mm DSLR lens
5. Dual Φ15mm rod

Specifications:

• Product Dimensions: 254 x 174 x 59 mm
• Package Dimensions: 255 × 230 × 100mm
• Product Weight: 675g±5g
• Package Weight: 1510g±5g
• Materials: Nylon with Fiberglass, Carbon Fiber, Magnesium Alloy, Aluminum Alloy
