Original price was: $302.00.$97.99Current price is: $97.99.
Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a colour accurate wide-gamut display, cinema camera control, and integrated Teradek RT and Bolt functionality.
- Professional On-Camera Monitor with ARRI Camera Control Kit
- Full HD 7-inch Touchscreen Monitor and
- DCI-P3 Colour
- 1800 nits brightness
- HDMI: 1x HDMI In, 1x HDMI Out
- SDI: 1x 3G SDI IN, 1x 3G SDI In/Out
- Power: 2-Pin Power Input (10 to 34v, 2A DC), Sony Battery Bracket
- Mounting: 4x ¼-20 thread points
- Camera Control: ARRI
- High quality products, hassle-free returns.
- Safe Transactions, Always
- fast shipping
- Shop with confidence, enjoy free returns.

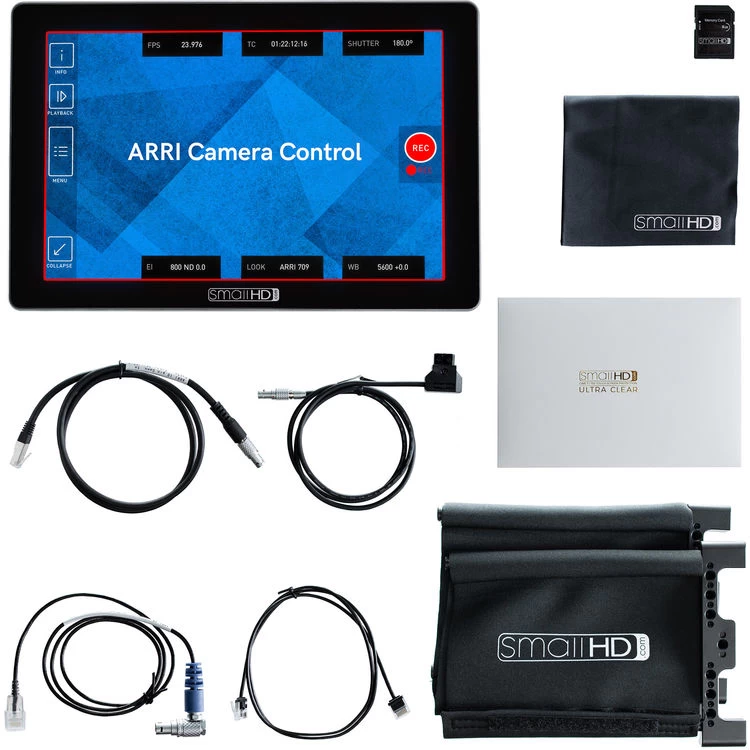

Use the lightweight Cine 7 Touchscreen On-Camera Monitor ARRI Kit from SmallHD to provide professional monitoring for your ARRI ALEXA Mini, Mini LF, or AMIRA camera with a sharp 7″ display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery mount, a sun hood, a screen protector, an 8GB SD card, and the ARRI control kit that includes software, as well as control and power cables.

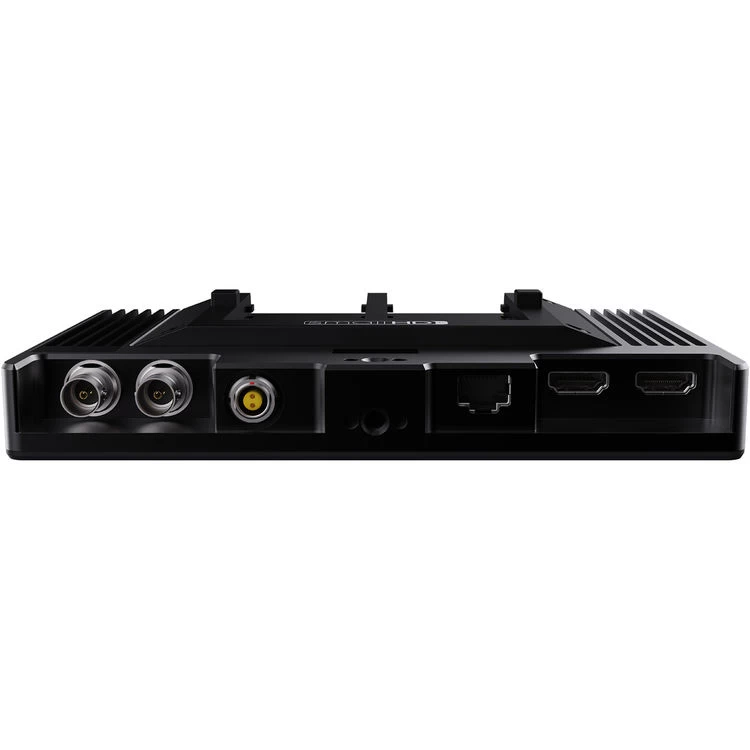

The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The ARRI control software loads onto the monitor and allows you to control ARRI camera functions on your ARRI ALEXA Mini, Mini LF, or AMIRA camera such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The included control cables allow the monitor to connect to the camera.

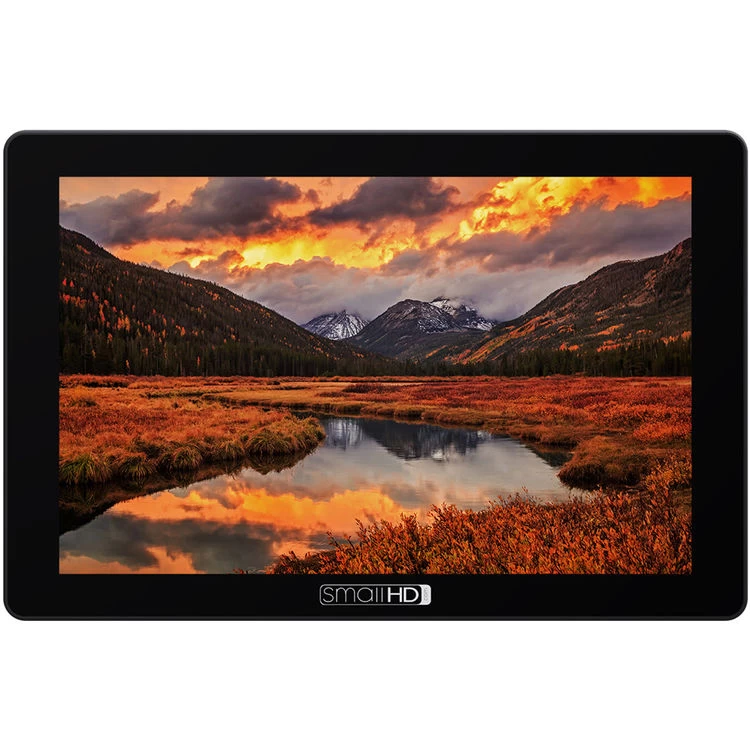

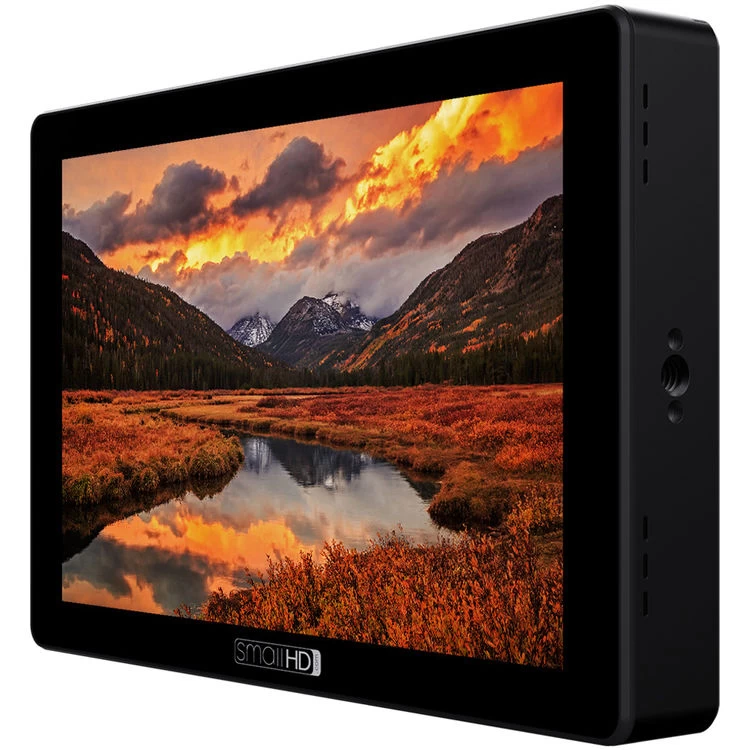

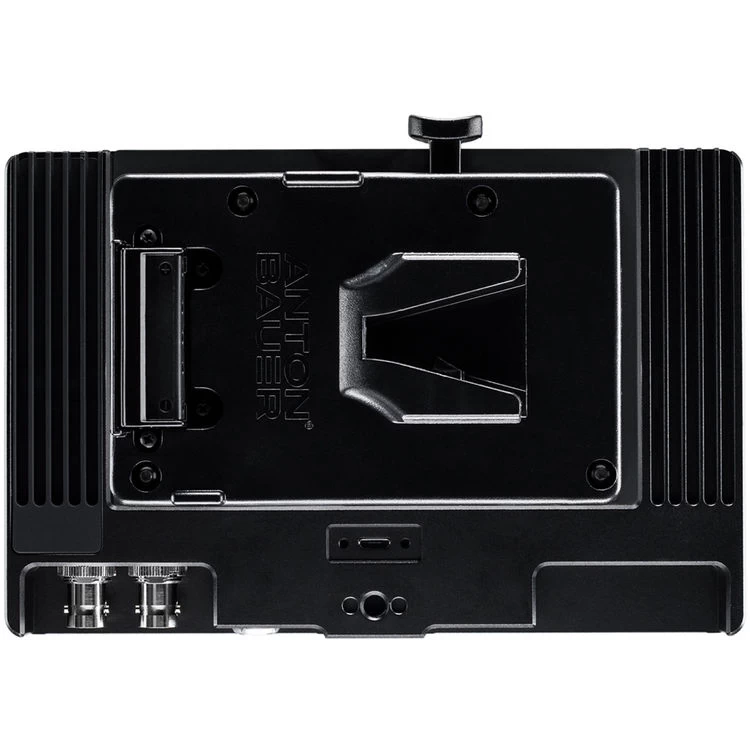

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery mount enables you to power the unit.
Software
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to 8 channels
Features
| Display Size | 7" |
|---|---|
| Display Type | Touchscreen IPS |
| Video Resolution | 1080 |
| Compatible Brand | For Arri |
