Original price was: $378.00.$95.99Current price is: $95.99.
- 0.71″ Micro-OLED EVF/HDMI In & Loop Out
- Up to 1080p60 HDMI Input, Zero Delay
- 1920 x 1080 Resolution Screen
- Run/Stop Trigger, 9.8″ USB-C Power Cable
- 10,000:1 Contrast, 5 x Function Buttons
- -2 to +6 Adjustable Diopter
- Waveform, Vectorscope, and Histogram
- Focus Peaking, False Color, Zebra
- Firmware Update via USB-C Port
- Rosette Mount with 1/4″-20 Thread
- High quality products, hassle-free returns.
- Safe Transactions, Always
- fast shipping
- Shop with confidence, enjoy free returns.
Overview
The Kinefinity EAGLE e-Viewfinder delivers unmatched clarity and responsiveness, ensuring a distraction-free viewing experience. Its superior optics and immersive display technology elevate your vision, empowering you to capture cinematic scenes or refine every detail with precision and control.
HDMI 1 Video Input
It supports 1080p, 1080i, and 1080psf signal inputs, with frame rates ranging from 23.97 to 60 fps, providing broad adaptability for various film production needs. This wide compatibility ensures that creators can freely switch between different setups and workflows in different shooting scenarios.
HDMI 2 Video Loop-out
The EVF body features not only a HDMI Type-A input port but also an HDMI loop-out port, allowing video signal monitoring while simultaneously looping the signal to a monitor, a recorder or a wireless transmission, making multi-monitor setups easier.
Streamlined Design

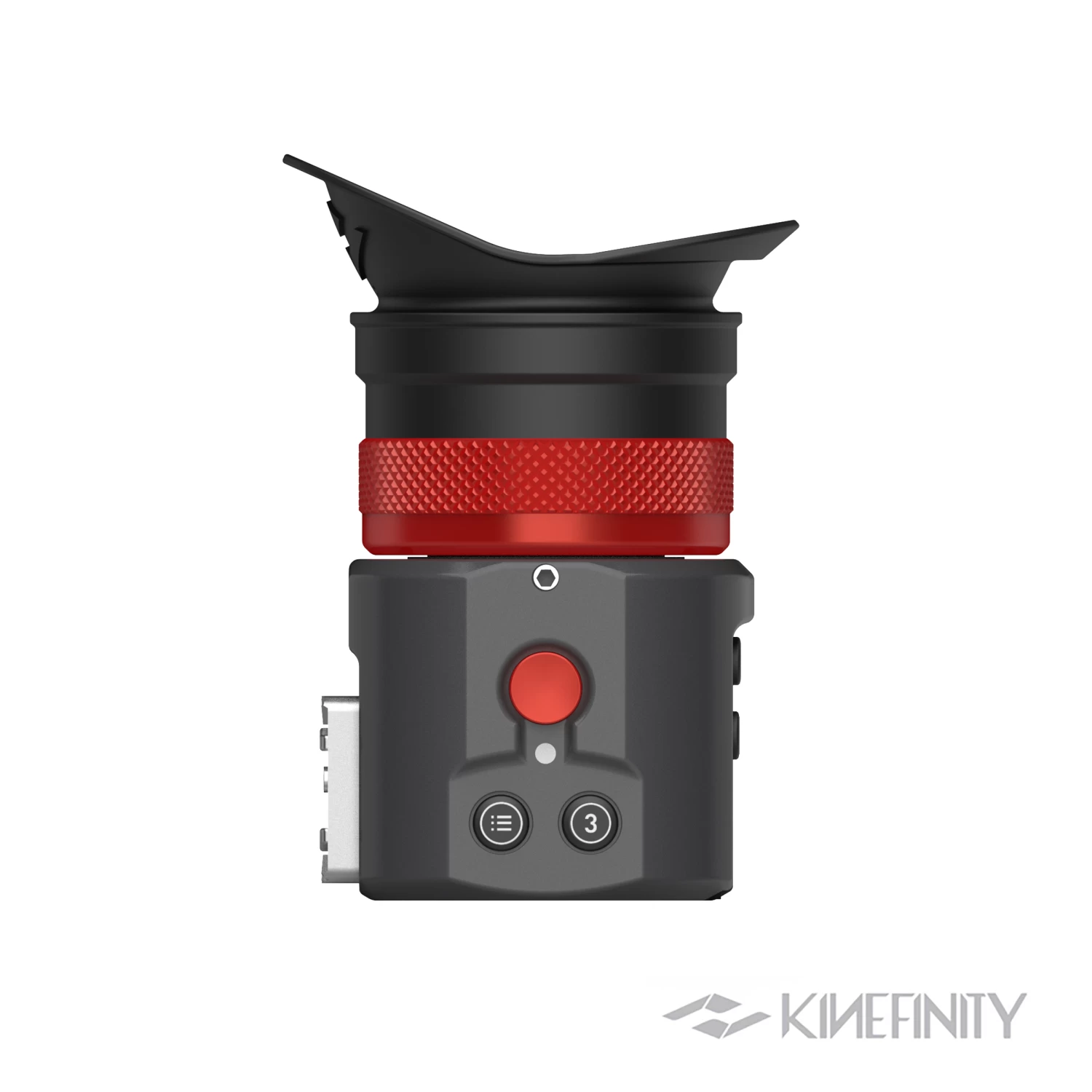

The streamlined design incorporates five function buttons, a power switch, a function knob, and essential assembly features including Rosette Mount and Movcam Quick-lock Mount, ensuring ease of use and adaptability to various shooting environments.
Noise-Free & Zero Delay
The Kinefinity EAGLE HDMI e-Viewfinder ensures a noise-free, zero-delay experience, providing filmmakers with unparalleled clarity and responsiveness. With 3W low power consumption and no internal fan, coupled with efficient heat dissipation, the e-Viewfinder operates silently, allowing for an undisturbed filming environment. The zero-delay feature enables real-time image capture and seamless focusing, ensuring the capture of all exciting moments and enhancing workflow efficiency.
In The Box
Kinefinity EAGLE HDMI e-Viewfinder x1
E-Viewfinder Cord CH25 (Type-C, 25cm) x1
Specifications
| Display | |
|---|---|
| Panel Type | Micro-OLED |
| Display Size | 0.71″ / 1.8cm |
| Resolution | 1920×1080 (RGBx3) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | >10,000:1 |
| Color Depth | 10-bit Processing (8-bit Panel) |
| Pixel Per Inch (ppi) | 3103 ppi |
| Optics | |
| Field of View | 33° |
| Distortion | <1.5% |
| Diopter | -6D ~ +2D |
| Power | |
| Power Voltage Input | 5V |
| Power Consumption | 3W |
| Connections | |
| HDMI 1 | HDMI Type-A x1, video input |
| HDMI 2 | HDMI Type-A x1, video loop out |
| HDMI Signal Format | 1920×1080 @ 23.98p / 24p / 25p / 29.97p / 30p @ 47.95p / 50p / 59.94p / 60p @ 23.98psf / 24psf / 25psf / 29.97psf / 50i / 59.94i / 60i |
| USB 1 | USB-C x1, PD for 5V power in |
| USB 2 | USB-C x1, for firmware updates |
| Interactive Interface | |
| Indicator | Power Switch x1 Function Button x5 Function Knob x1 LOGO Tally x1 Status Tally x1 |
| Mount | Rosette Mount with M6 x1 (with Quick-lock Design) Quick-lock Mount x1 |
| Features | |
| Exposure | Luma Waveform Luma / RGB Histogram False Color Zebra |
| Focus | 1:2 / 1:4 Magnification for focus Peaking / Edge Enhancement |
| OSD | Frame line Center marker Overlay Clear |
| Image | Desqueeze (Anamorphic) Image Rotation Image Flip |
| More | HDMI Metadata Custom Button Noise-Free (no built-in fan) Zero-Delay |
| General | |
| Dimensions | 105 x 54 x 59mm / 4.1″ x 2.1″ x 2.3″ |
| Weight | 348g / 12.2oz |
| Material | Aluminium Alloy, and Glass |
| Color | Space Black |
