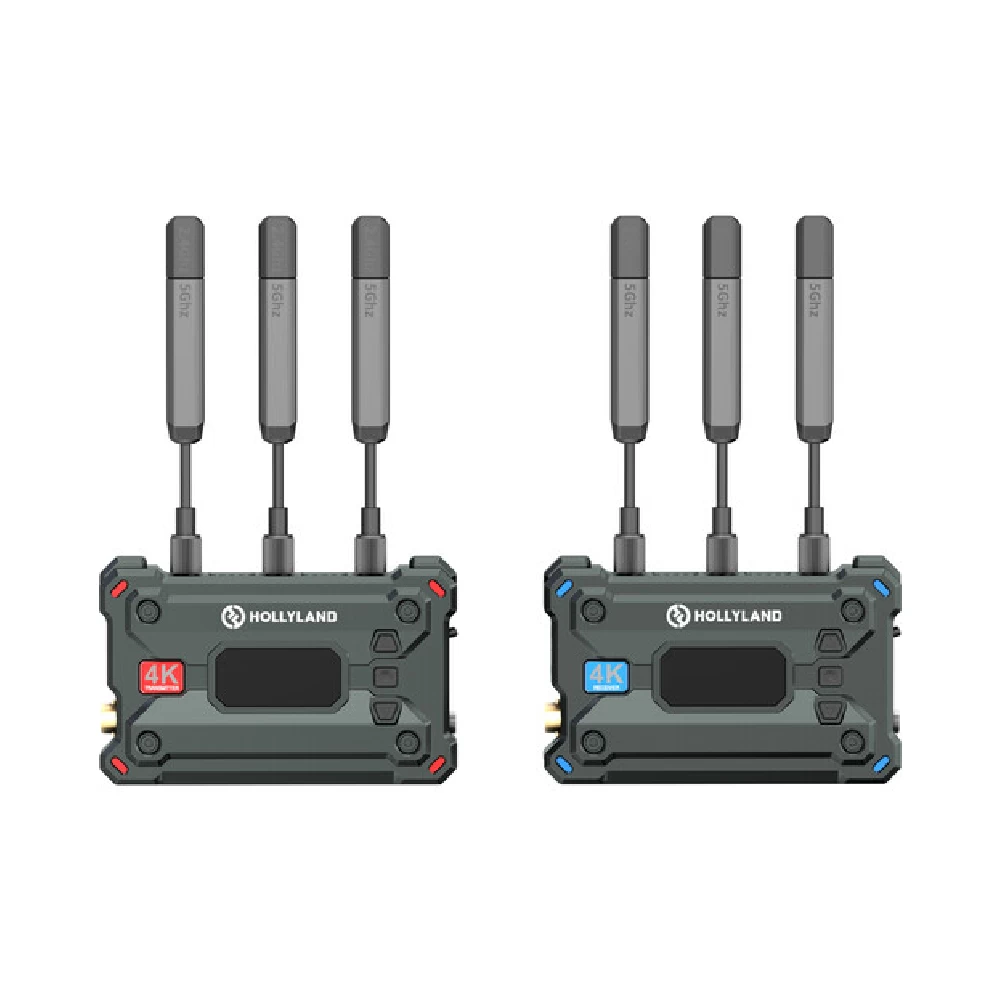

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System

Overview

Enhance your production with the Pyro S 4K HDMI/SDI Wireless Video Transmission System from Hollyland, designed for seamless 4K30 wireless video transmission. This versatile system comes complete with a wireless transmitter, a receiver, seven antennas, a USB-C adapter, a DC power adapter, and an adjustable shoe adapter mount. The transmitter offers both HDMI and SDI inputs, providing an impressively low 50 ms latency for line-of-sight transmission up to 1300 feet to the included receiver. Additionally, in broadcast mode, you can connect up to four receivers and two mobile devices, allowing a range of up to 650 feet. The receiver also offers HDMI and SDI outputs.

In The Box

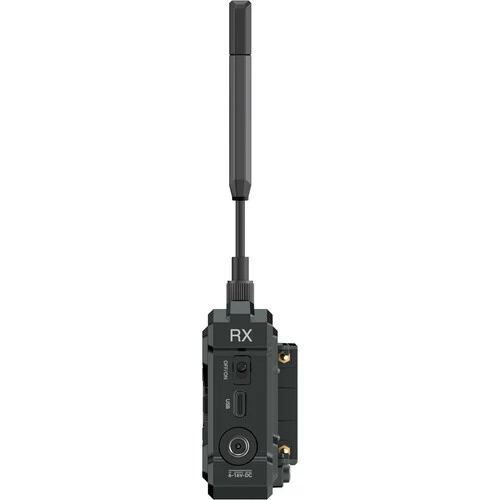

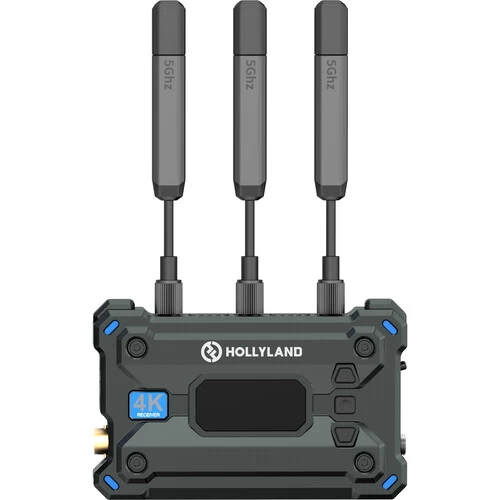

Hollyland Pyro S 4K HDMI/SDI Wireless Video Receiver

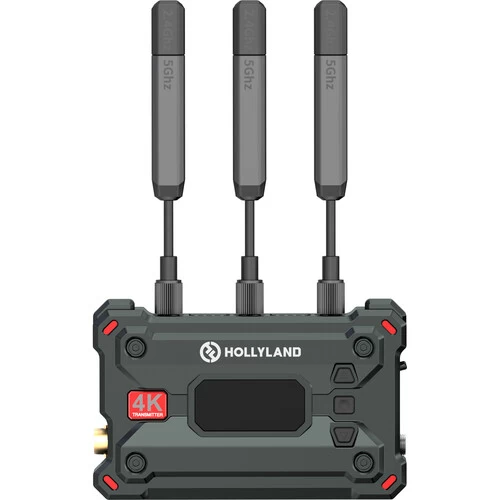

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter
7 x Hollyland Paddle Antenna for Pyro Series (2.4/5 GHz)
Hollyland Rotatable Cold Shoe Adapter Mount for Wireless Unit
USB-C OTG Adapter
Hollyland DC Power Adapter for Pyro S (12 VDC, 2A)
Limited 1-Year Manufacturer Warranty

Specifications

Extended Range and High-Quality Performance

The Pyro S wireless video transmission system utilizes advanced Wi-Fi technology, enabling a single transmitter to connect with up to four receivers while maintaining a stable, high-quality signal. This setup offers great versatility, particularly when multiple monitors are required on set. In Broadcast mode, the transmitter can send signals to four receivers within a 650-foot range. When Broadcast mode is disabled, it supports transmission to two receivers and two mobile devices, with an extended line-of-sight range of up to 1300 feet.

Reliable Signal with Minimal Latency

The Pyro S offers stable signal transmission up to 1300 feet with incredibly low latency of just 50ms. Unlike the Mars series, which may compromise image quality and latency at longer distances, the Pyro S ensures an optimal balance between range and video quality. Additionally, users can select between two modes: HD mode, which delivers up to 12 Mb/s for superior image quality, and Smooth mode, which dynamically adjusts latency for real-time adaptability.

Crystal-Clear 4K Imaging

The Pyro S supports up to 4K30 video transmission over HDMI and 1080p60 via SDI, ensuring sharp, detailed visuals. This makes it an ideal choice for professionals in broadcasting, filmmaking, and other high-demand applications where clarity and precision are critical.

USB Video Class (UVC) Support

Featuring UVC support, the Pyro S allows effortless plug-and-play functionality with computers and other devices without the need for additional drivers or software. This makes it a perfect solution for live streaming, video conferencing, and other applications where simplicity and quick setup are important.

Streamlined RTMP Streaming

The Pyro S integrates RTMP capabilities, allowing users to input their wireless key and connect a network card to stream live directly to platforms like YouTube, Twitch, TikTok, and Zoom. This direct streaming feature simplifies live broadcasting without requiring additional external equipment.

Smart Channel Selection

At startup, the Pyro S automatically selects the best available frequency channel for optimal performance. Users can also manually activate the smart channel scan feature on the receiver, which provides real-time frequency feedback, ensuring smooth, uninterrupted video transmission.

Effortless Configuration

The Pyro S system supports preset grouping and auto-pairing of transmitters and receivers, eliminating the hassle of manual configuration, making setup quick and easy, even for complex shooting environments.

Flexible Power Options for Continuous Operation

The Pyro S offers multiple power options, including DC input, NP-F battery support, and USB-C (5-12V) power. The ability to use a USB-C power supply is especially convenient when working with stabilizers, as it reduces weight and improves mobility by eliminating the need for bulky NP-F batteries.
