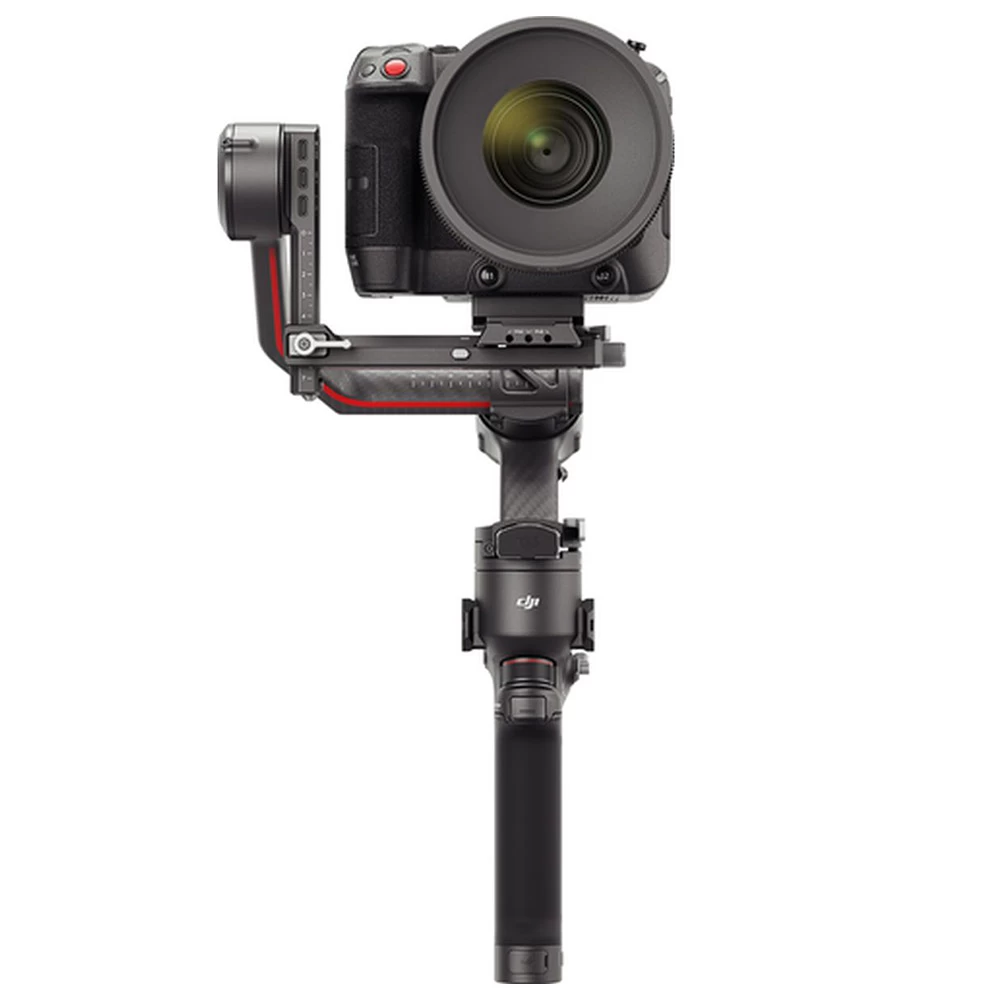

DJI RS3 Gimbal

• NATO Ports
• 1/4″-20 Mounting Hole
• Cold Shoe
• Video Transmission/Focus Motor Port (USB-C)
• RSS Camera Control Port (USB-C)
• Focus Motor Port (USB-C)

Battery

• Model: BHX711-3000-7.2V
• Type: 2S
• Capacity: 3000 mAh
• Energy: 21 Wh
• Max. Runtime: 12 hours [1]
• Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
• Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections

• Bluetooth 5.0
• Charging Port (USB-C)
• Ronin App Requirements
• iOS 11.0 or above
• Android 7.0 or above

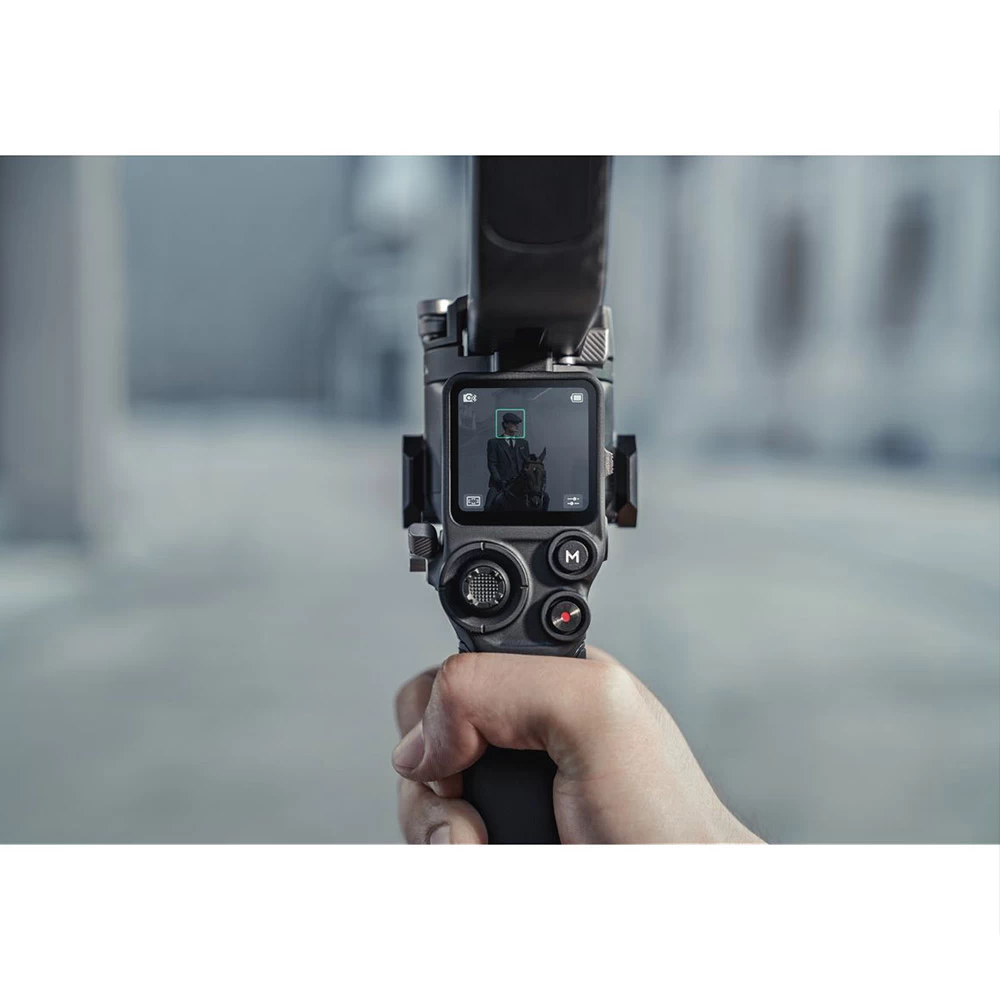

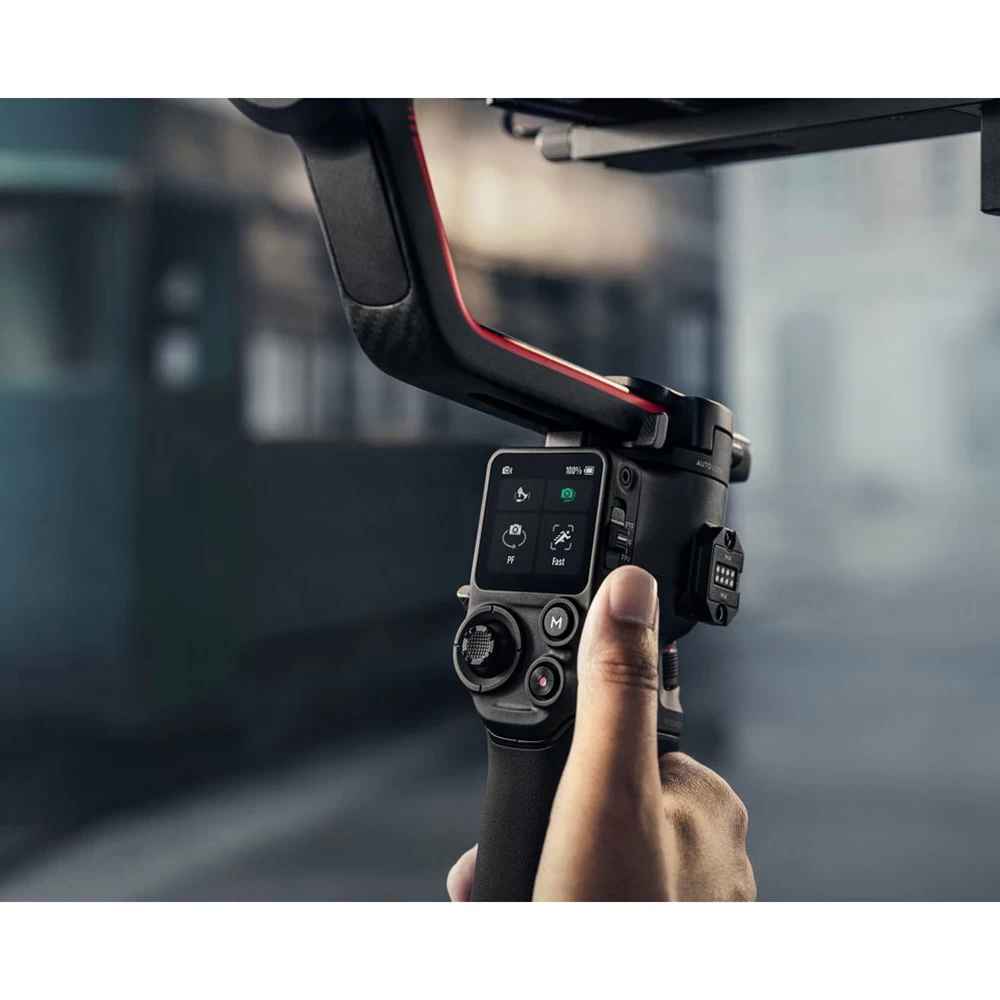

Languages Supported by the Touchscreen

• English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

• Tested Payload
• 3 kg (6.6 lbs)
• Maximum Controlled Rotation Speed
• Pan: 360°/s
• Tilt: 360°/s
• Roll: 360°/s
• Mechanical Range
• Pan axis: 360° continuous rotation
• Roll axis: -95° to +240°
• Tilt axis: -112° to +214°

Mechanical & Electrical Properties

Operating Frequency

• 2.400-2.484 GHz

Bluetooth Transmitter Power

• <8 dBm

Operating Temperature

• -20° to 45° C (-4° to 113° F)

Weight

• Gimbal: Approx. 990 g (2.18 lbs)
• Grip: Approx. 200 g (0.44 lbs)
• Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
• Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)

Dimensions

• Folded: 254×230×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
• Unfolded: 364×187×170 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)

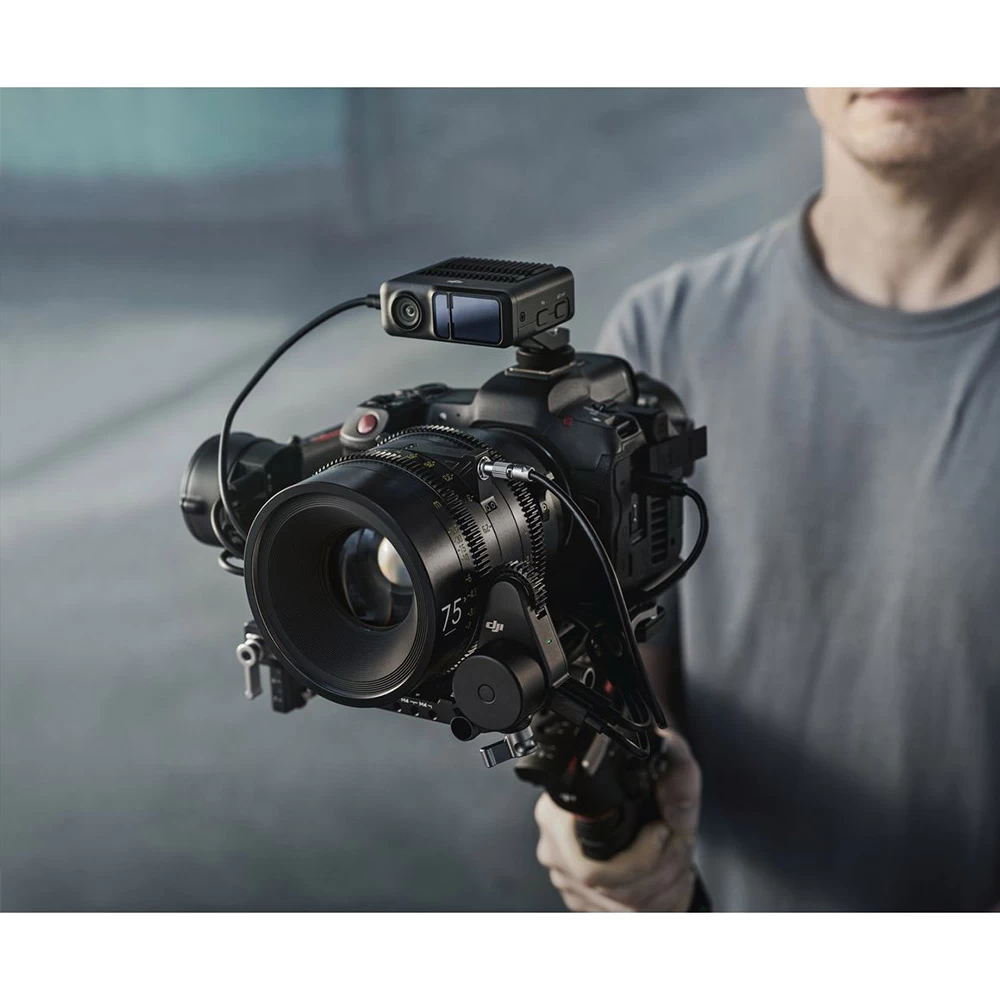

DJI Ronin Image Transmitter

Connections

• Power/Communication Port (USB-C)
• HDMI Port (Mini HDMI)
• RSS Camera Control Port (USB-C)
• Expansion Port
• Cold Shoe
• Operating Frequency
• 2.400-2.484 GHz
• 5.725-5.850 GHz

Weight

• 126 g (0.27 lbs)

Dimensions

• 82×63×24 mm (L×W×H)
• Transmitter Power (EIRP)
• 2.400-2.484 GHz:
• <25 dBm (FCC)
• <20 dBm (CE/SRRC/MIC)
• 5.725-5.850 GHz:
• <25 dBm (FCC/SRRC)
• <14 dBm (CE)

Battery

• Capacity: 2970 mAh
• Compatible Charger: 5V/2A
• Charging Time: Approx. 2.5 hours
• Max Battery Life: Approx. 3.5 hours

Transmission Range

• 200 m (SRRC/FCC) [2]
• 100 m (CE) [2]
• Latency
• 60 ms
• Operating Current/Voltage
• 900 mA, 3.7V
• Operating Temperature
• 0° to 45° C (32° to 113° F)
