Overview

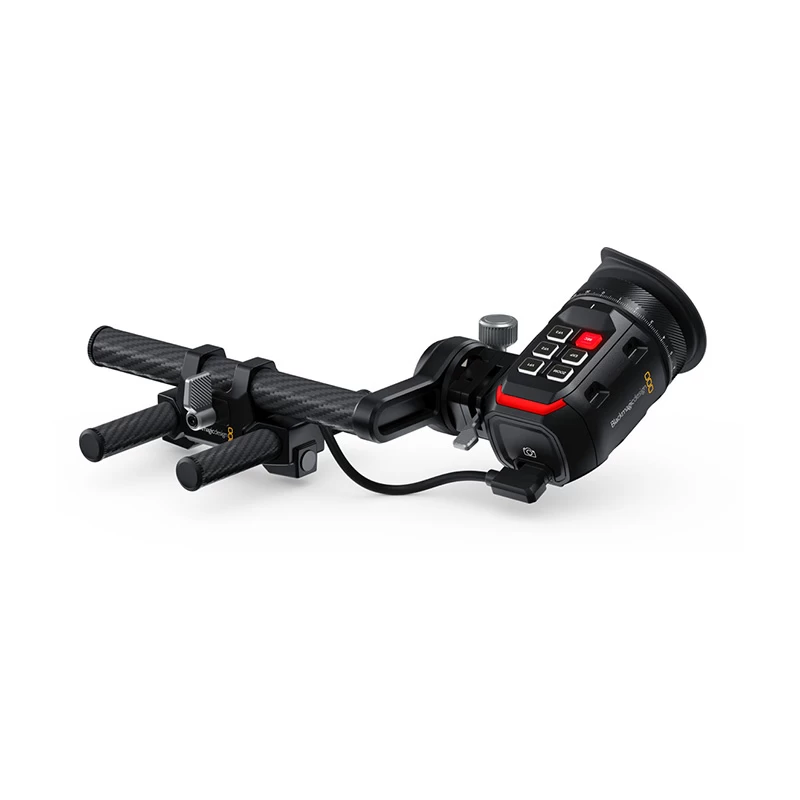

Enhance your Blackmagic Design URSA Cine 12K or PYXIS 6K camera with the high-resolution URSA Cine EVF, delivering sharp, vibrant visuals for effortless shooting in any setting. Featuring a 1920 x 1080 color OLED display with support for up to 60 fps, the EVF provides a detailed view with status overlays, frame guides, and a built-in focus chart for precise focusing. It attaches to your camera via the included mounting bracket, which incorporates a 15mm rod clamp, a 19mm cross rod, and two carbon fiber 15mm rods. A built-in tally light ensures clear indication when the camera is recording.
Note
The Blackmagic URSA Cine Handle is required for mounting the EVF onto Blackmagic URSA Cine 12K and Blackmagic PYXIS 6K cameras
In The Box
Blackmagic Design URSA Cine EVF
Rotating Bracket
Carbon Fiber Rod (19mm)
2 x Carbon Fiber Rod (15mm)
Extension
Right-Angle to Right-Angle USB Viewfinder Cable (Short)
Right-Angle to Straight USB Viewfinder Cable (Short)
Right-Angle to Straight USB Viewfinder Cable (Long)
2 x Rubber Eyecup
Fabric Cloth
Sticker
Specifications
| Panel Type |
OLED |
| Screen Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Color Support |
16.2 Million Colors (6-Bit+FRC) |
| Diopter Correction |
-5.0 to +5.0 |
| Inputs/Outputs |
1x USB-C 3.0 / 3.1/3.2 Gen 1 Camera Input |
| Video Format |
USB DCI 4K: 60 |
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity |
| Mounting |
1x Accessory Rail (Left) |
Compatibility
Blackmagic URSA Cine 12K LF cameras
Blackmagic PYXIS 6K cameras
Blackmagic URSA Cine Handle
The included Blackmagic URSA Cine EVF Extension is compatible with standard extended viewfinder supports
