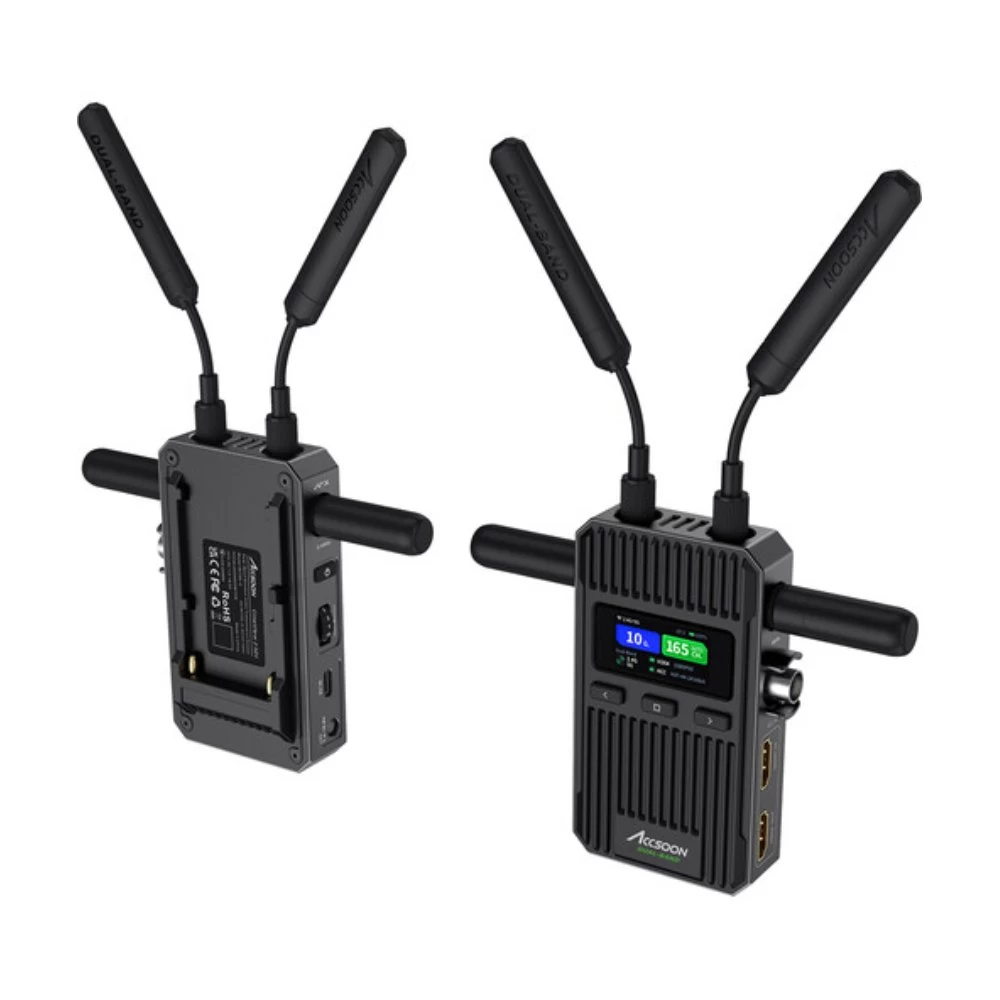

Accsoon Cineview 2 SDI Wireless Video Transmission Set

About

1500ft range 1080P wireless video transmission system

Stability with a Longer Range

Accsoon’s newest addition to their CineView series, the CineView 2, leverages their exclusive US-patented 2.4GHz+5GHz Dual-Band technology and introduces a redesigned antenna system. This device is capable of transmitting 1080P 60fps video and audio signals up to 1500 feet (450 meters) line of sight, with an impressively low latency of under 50ms.

Dual-Band Stable Connection With Longer Range – Proven Market Stability

Utilizing our Dual-Band transmission technology alongside an innovative antenna design, the CineView 2 guarantees a stable connection even over extended distances.

Redesigned Antenna, Enhanced Signal

Accsoon continues to innovate in stable wireless transmission. With the new antenna design, the CineView 2 outperforms the CineView SE/HE by extending its transmission range to an impressive 1500 feet.

Compact and Lightweight Design

Weighing just 200g, the CineView 2 is more portable and quicker to set up than ever before.

Monitor on Multiple Devices

Each CineView 2 transmitter can wirelessly stream video to any combination of dedicated CineView receiver units and smart devices (iOS and Android), supporting up to four devices simultaneously.

Silent Operation for Quiet Shooting

Featuring a classic CineView design for efficient heat dissipation, the CineView 2 ensures quiet operation without fan noise.

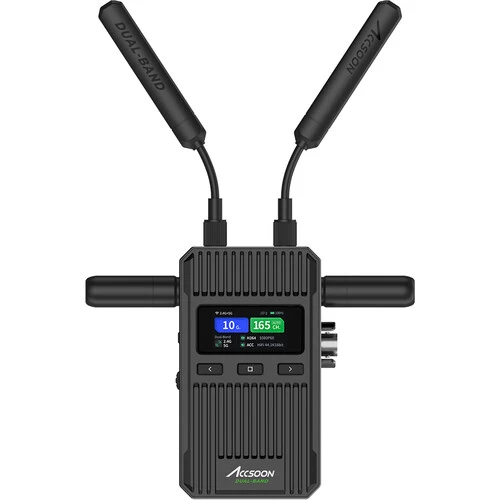

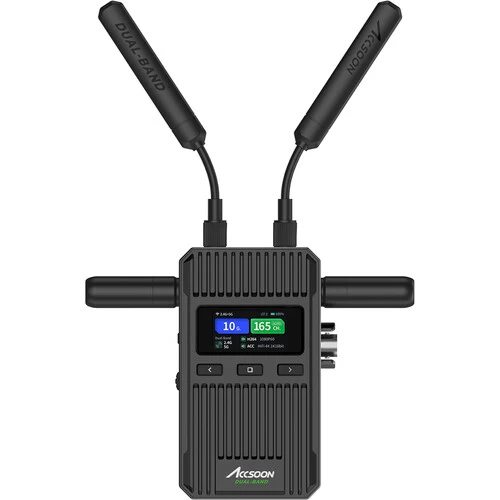

Full-Color LCD Screen

Equipped with a full-color LCD screen for enhanced user experience.

Features

• Dual-band (2.4G + 5G) WiFi simultaneoustransmission, stronger anti-interference
• Transmission range up to 1500ft/450m
• Latency less than 50ms

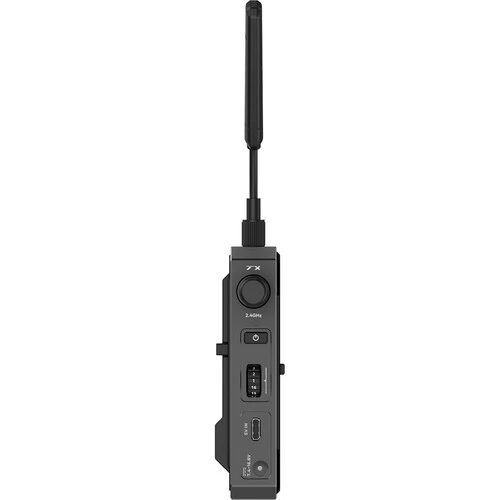

• TX: SDI/HDMI input, 4K 60P HDMI input and loop-out

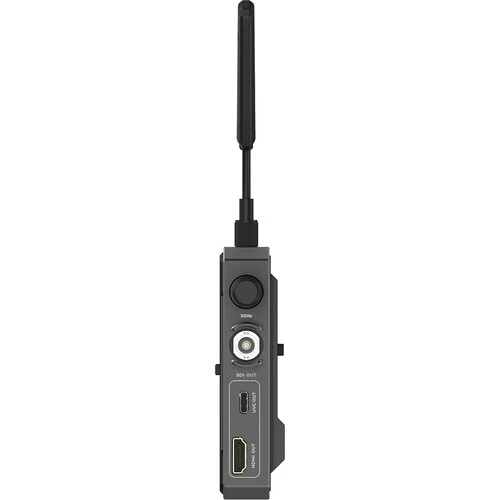

• RX: SDI/HDMI output and UVC out
• 1 TX to 4RX / Apps, mixed and match
• New full-color display
• Video input & output support up to 1080p60fps
• Cross-Compatibility with CineView SE/HE/Quad
• Professional monitoring App Accsoon SEE for iOS andAndroid

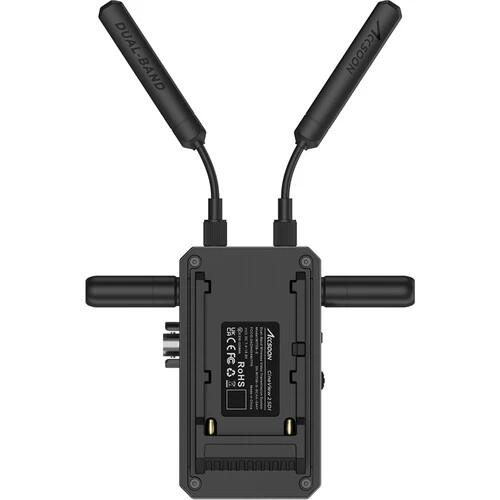

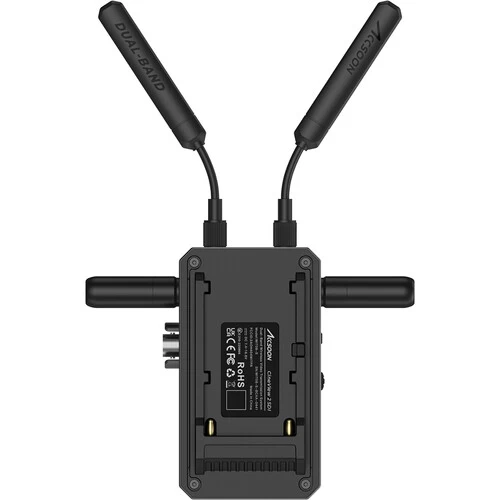

• Power by DC source and NP-F battery and USB-C
• Automatic channel selection for optimal transmission
• Group pairing knob on TX & RX

In The Box

• Accsoon CineView 2 SDI/HDMI Wireless Video Transmitter
  • Shoe Mount
  • Limited 1-Year Manufacturer Warranty
• Accsoon CineView 2 SDI/HDMI Wireless Video Receiver
  • Shoe Mount
  • Limited 1-Year Manufacturer Warranty

Specifications

Transmitter
Video Input	SDI/HDMI
SDI Input Format	1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
HDMI Input Format	2160P/1080p 23.98/24/25/29.97/30/50/59.94/60fps
HDMI Loop-out Format	2160P/1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port	5.5mmx2.1mm center positive
DC Voltage	7.4~16.8V
Audio	44.1KHz/48KHz 16bit/24bit PCM
Latency	(Camera latency not included)
Transmission Power	17~20dBm
Transmission Range	1500ft (No obstacles, no interference)
Operating Environment Temperature	-10~40℃
Dimensions	60mmx107mmx28mm(Antennas not included)
Weight	200g



Receiver
Video Output	SDI/HDMI
SDI Output Format	1080p 24/25/30/50/60fps Level A
HDMI Output Format	1080p 24/25/30/50/60fps
DC Port	5.5mmx2.1mm center positive
DC Voltage	7.4~16.8V
Operating Environment Temperature	-10~40℃
Dimensions	60mmx107mmx28mm(Antennas not included)
Weight	200g
